filebeat收集nginx的json格式日志

为了便于利用 ELK日志平台收集展示 Nginx 的日志,可以将 Nginx 的日志改成 json 的格式.

1. 配置

1.1 修改 nginx 配置

vim /etc/nginx/nginx.conf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
##打开nginx配置文件添加这些信息
log_format json '{ "time_local": "$time_local", '
'"remote_addr": "$remote_addr", '
'"referer": "$http_referer", '
'"request": "$request", '
'"status": $status, '
'"bytes": $body_bytes_sent, '
'"agent": "$http_user_agent", '
'"x_forwarded": "$http_x_forwarded_for", '
'"up_addr": "$upstream_addr",'
'"up_host": "$upstream_http_host",'
'"up_resp_time": "$upstream_response_time",'
'"request_time": "$request_time"'
' }';

##再将日志引用改成json
access_log /var/log/nginx/access.log json;
1
2
> /var/log/nginx/access.log  # 清空日志
systemctl restart nginx # 重启 nginx

通过浏览器访问, 可以看到 json 输出的日志

1.2 修改 filebeat 配置

vim /etc/filebeat/filebeat.yml

1
2
3
4
5
6
7
8
9
10
11
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/log/nginx/access.log
##添加这两行信息,使其能解析json格式的日志, 和 path 对齐
json.keys_under_root: true
json.overwrite_keys: true

output.elasticsearch:
hosts: ["localhost:9200"]

1.3 filebeat 服务

sudo vi /lib/systemd/system/filebeat.service

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[Unit]
Description=journalbeat
After=network.target

[Service]
Type=simple
User=root
Group=root
Restart=no
WorkingDirectory=/home/elasticsearch/workspace/filebeat-7.10.1-linux-x86_64/
ExecStart=/home/elasticsearch/workspace/filebeat-7.10.1-linux-x86_64/filebeat
PrivateTmp=true

[Install]
WantedBy=multi-user.target

systemctl start filebeat

2. kinaba查看

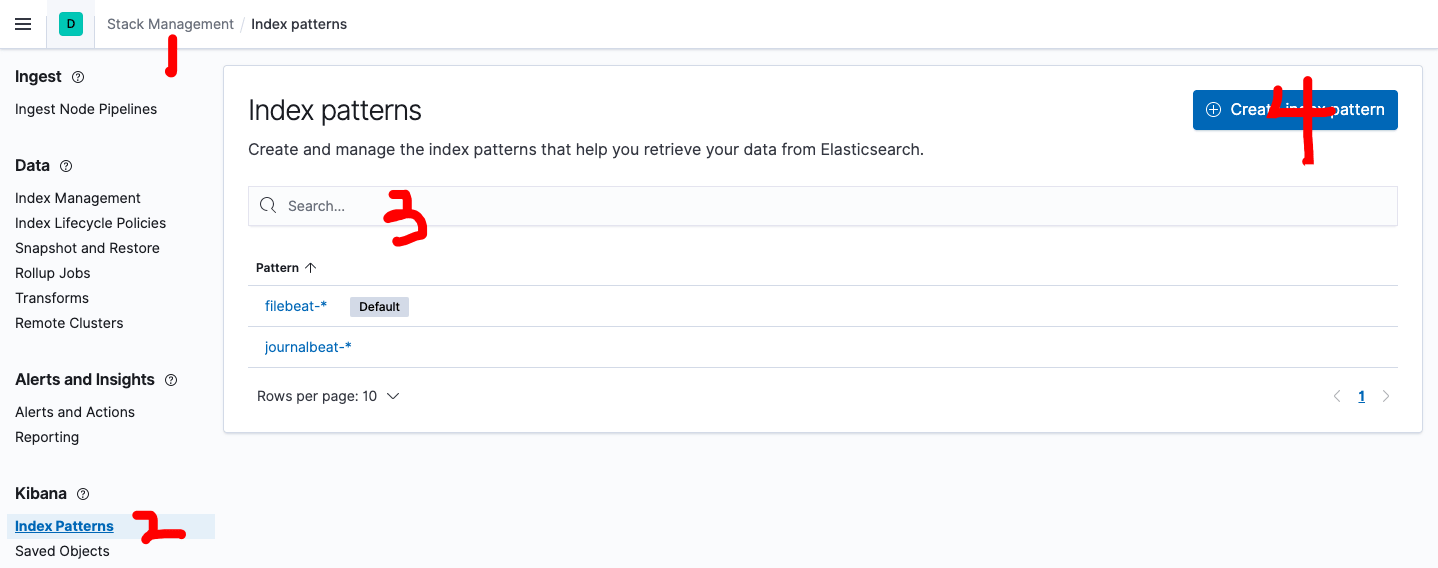

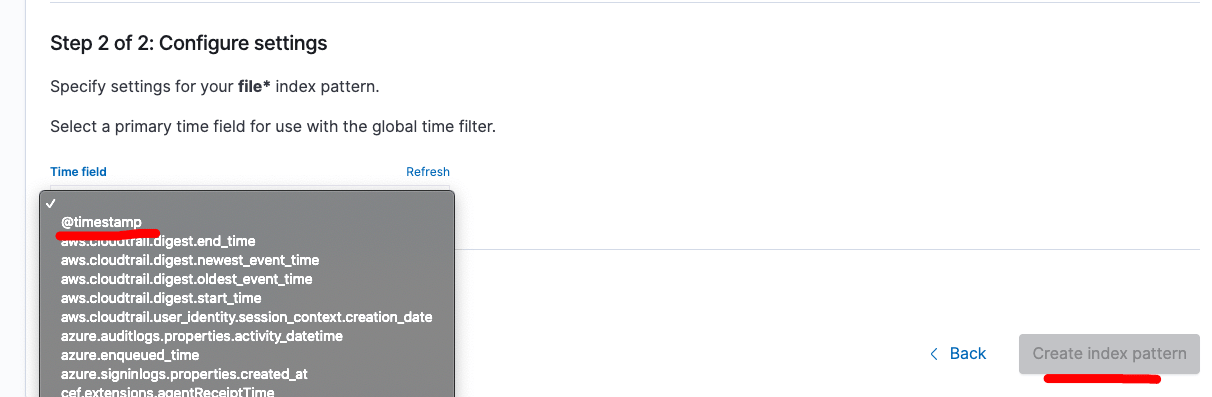

2.1 创建索引

1
1

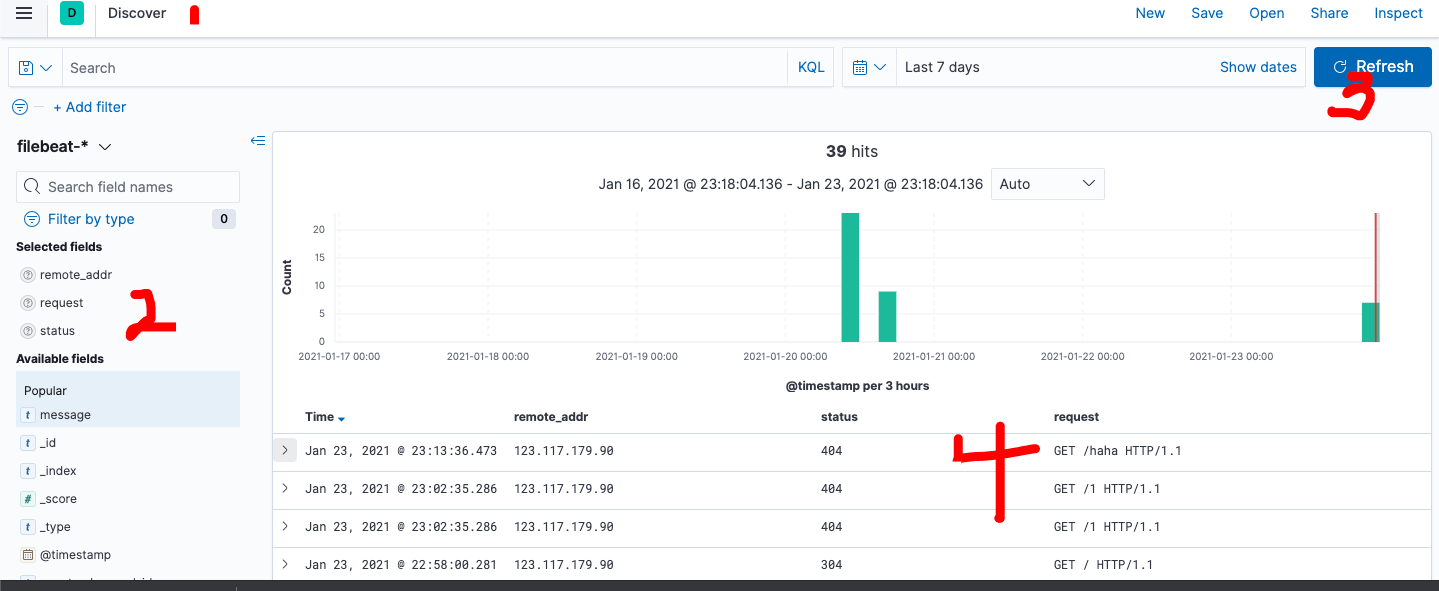

2.2 查询

1

3. 参考资料
